Cutter suction dredger 500 (20 inch) is a dismountable dredger with an integrated dredge pump & drive system. This makes the dredger efficient and compact, allowing for easy transportation and high production rates.
We offer a range of customization options to adapt CSD 500 for any project.
SCO HID 20inch cutter suction dredger, total installation power 1500kw with Cummins brand main engine and auxiliary engine,Pump discharge flow capacity 3500-4000m3/h. Has a max dredging depth of 14m(underwater) with a discharge distance capability reach to 1500m.
CSD 500 has a shallow draft of 1.4m. This is due to its three pontoon design one central and two on the sides. The pontoons provide this floating capacity, which allows the dredger to easily operate in inshore and offshore waters.

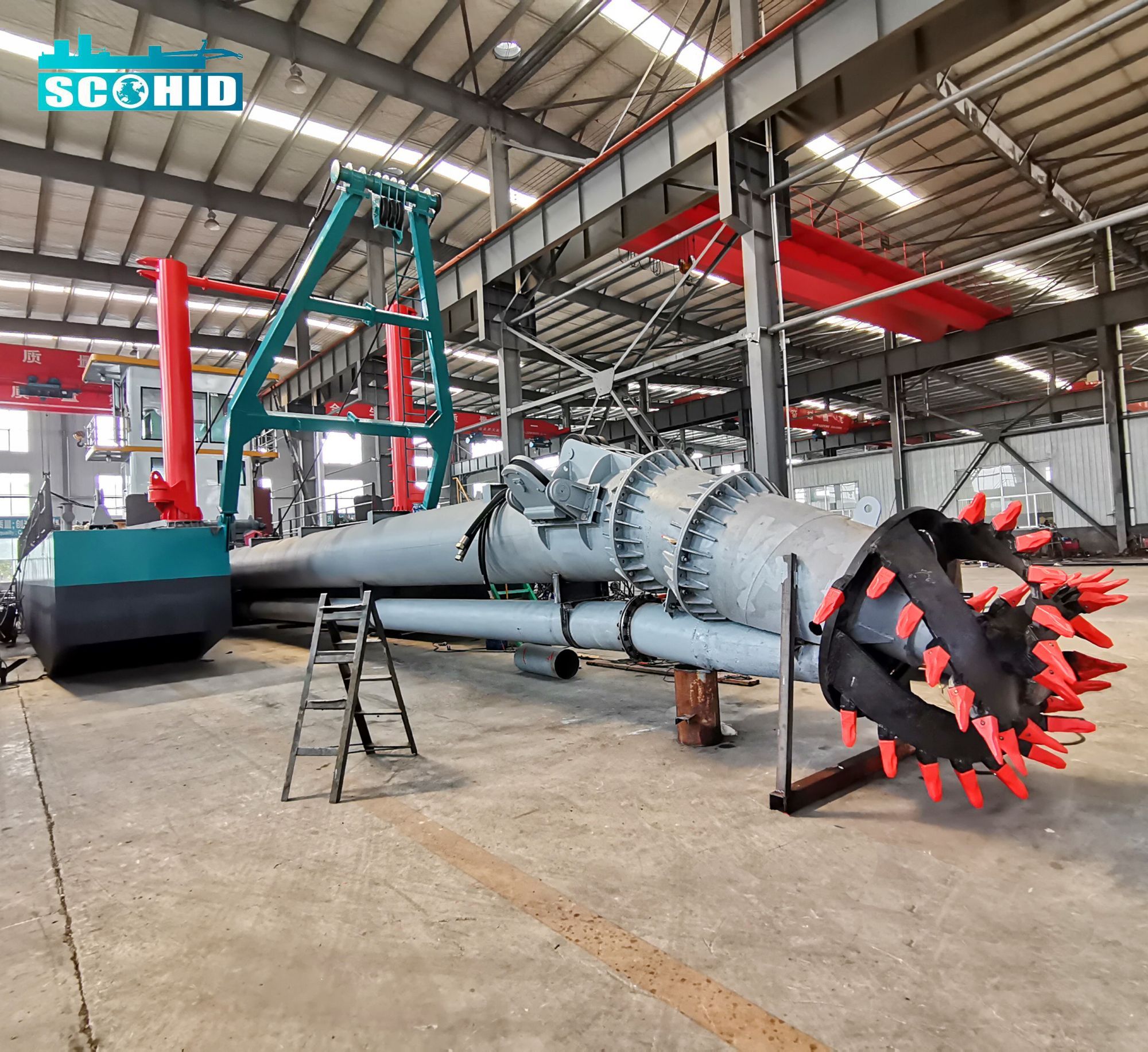

This dredger can be taken apart into one central pontoon, two side pontoons, a control cabin,the spuds and the cutter ladder. Due to CSD 500 dis-mountable design, it is practical for transport and storage.

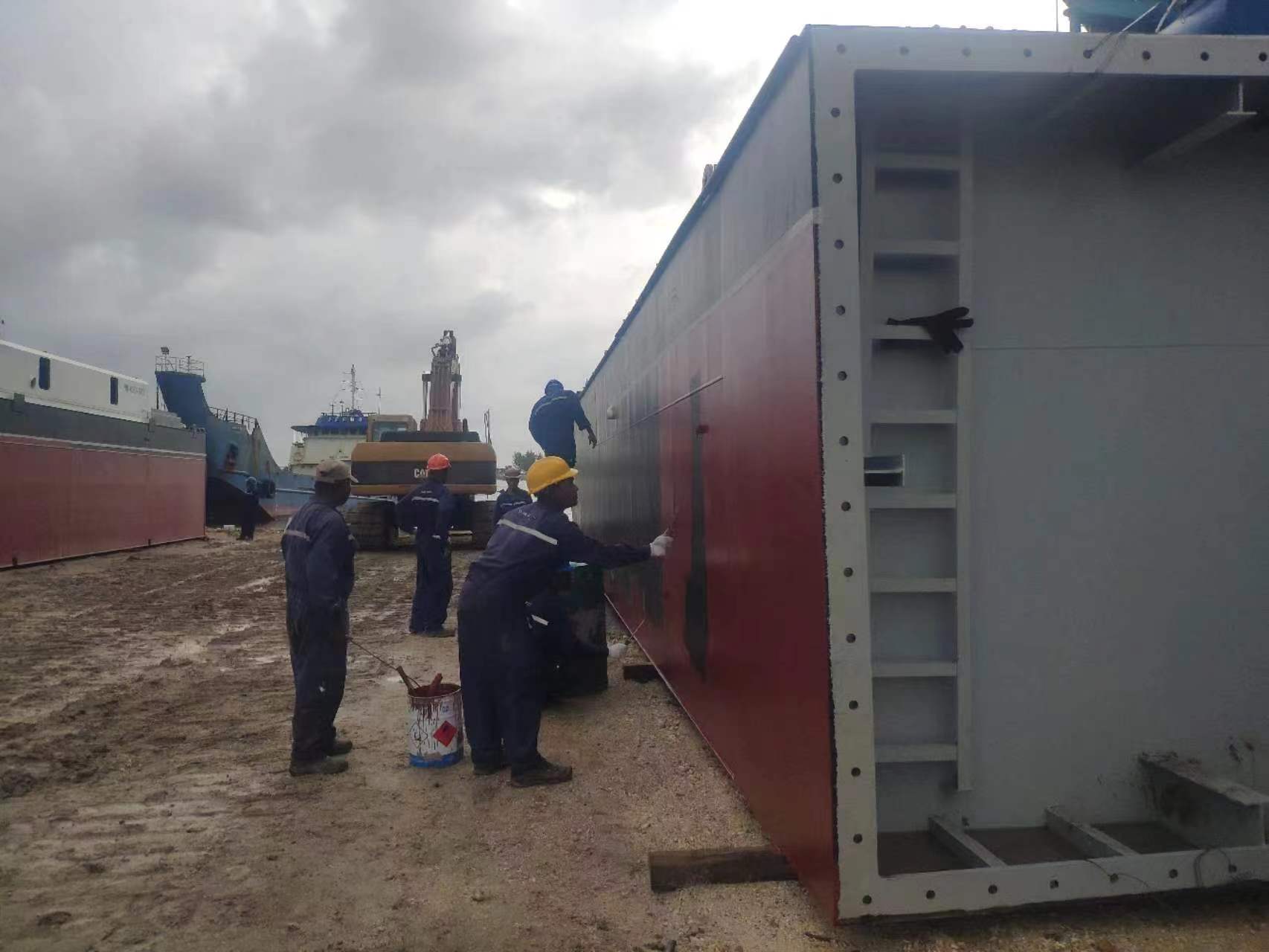

The cutter suction dredger traveled across the ocean and successfully arrived at the project construction site. It was the local rainy season and the ground was slippery, which undoubtedly greatly increased the difficulty of assembly.
However, SCO HID's experienced assembly engineers quickly adjusted the assembly method and sequence, successfully installed it in a short time, and organized the crew to conduct comprehensive testing of the equipment. There is no doubt that the equipment can operate with high efficiency.
We offer many customization options for the CSD500 cutter suction dredger. Some of these include hydraulic propulsion, spud carrier, anchor booms, automated system & production meter.
If you have any additional requirements, please feel free to inquire. This remarkable equipment is perfect for channel dredging, port maintenance, and land reclamation.
