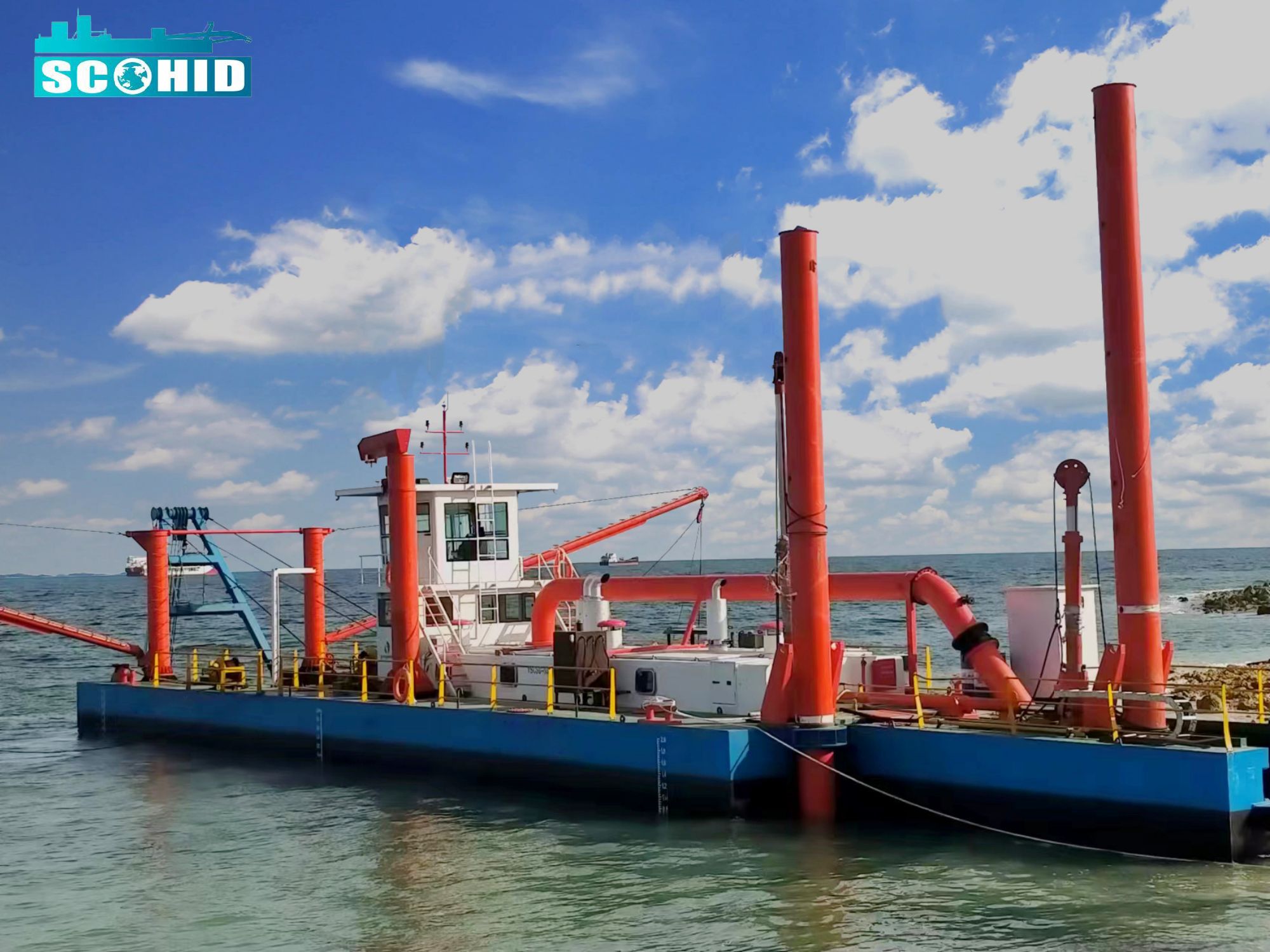

A Cutter Suction Dredger (CSD) is a type of hydraulic dredging equipment designed to cut and remove material from the seabed or riverbed, and then transport it to a designated location through a pipeline.
It combines mechanical cutting and hydraulic suction to effectively dredge hard soils, clay, and rock. The machine's versatility and efficiency make it one of the most widely used dredging vessels.
A typical Cutter Suction Dredger consists of several key components:
1. Cutter Head: A rotating structure with cutting blades that loosen and disintegrate the material on the seabed or riverbed.
2. Suction Pipe: Positioned behind the cutter head, it sucks up the loosened material along with water.
3. Dredge Pump: A powerful pump that transports the dredged material through the pipeline to the disposal site.
4. Ladder: A steel structure that supports the cutter head and suction pipe. It can be lowered or raised to adjust the cutting depth.
5. Spud Poles: Vertical poles that anchor the dredger while it operates. They provide stability and allow the dredger to pivot as it moves laterally.
6. Winches and Anchors: Used to control the sideways swinging motion of the dredger and to move it forward.
7. Pipeline: A series of pipes that transport the dredged material from the dredger to the disposal site or reclamation area.
The dredger is anchored at the dredging site using its spud poles and additional anchors. The spud pole at the stern of the vessel acts as a pivot point, while the anchors at the bow control the sideways movement.
The ladder, which supports the cutter head and suction pipe, is lowered onto the seabed or riverbed. The depth to which the ladder is lowered depends on the desired dredging depth.
The cutter head begins to rotate, and its blades cut into the seabed, loosening the material. The rotation speed and pressure of the cutter head can be adjusted based on the type of material being dredged.
As the cutter head disintegrates the material, a mixture of sediment and water is sucked up through the suction pipe. The suction created by the dredge pump ensures that the material is efficiently removed from the seabed.
The dredged material is then transported through the pipeline to the disposal site. The pipeline can be either floating on the water surface or submerged, and it can extend several kilometers depending on the project requirements.
To cover a wide area, the dredger swings sideways in an arc around the spud pole, controlled by winches and anchors. After completing a pass, the spud pole is repositioned, and the dredger advances forward to start a new pass.
Cutter Suction Dredgers can be classified into different types based on their design, propulsion, and application:
These are commonly used for dredging operations in confined areas such as rivers and lakes. They rely on spud poles and anchors for movement and stability.
Self-propelled CSDs have their own propulsion systems, allowing them to move between sites without external assistance. They are ideal for large-scale offshore projects and are more versatile in terms of mobility.
Electric CSDs are powered by electric motors instead of diesel engines. They are used in environments where noise and emissions need to be minimized, such as urban areas or environmentally sensitive zones.
CSDs can dredge a wide range of materials, from soft sediments to hard rock. This versatility makes them suitable for various dredging projects.
The combination of mechanical cutting and hydraulic suction allows for efficient and continuous dredging operations, minimizing downtime and maximizing productivity.
CSDs can achieve precise dredging results due to their controlled cutting and suction mechanisms. This precision is crucial for projects that require accurate depth and contour specifications.
The powerful dredge pumps and extensive pipeline systems enable CSDs to transport dredged material over long distances, making them suitable for land reclamation and beach nourishment projects.
Modern CSDs are equipped with advanced technologies to minimize environmental impact. These include features to reduce turbidity and spill, as well as systems to monitor and control noise and emissions.
The specific conditions of the dredging site, such as water depth, sediment type, and wave action, must be considered when selecting the appropriate CSD and planning the operation.
Compliance with environmental regulations is essential. This includes obtaining necessary permits, conducting environmental impact assessments, and implementing measures to mitigate adverse effects.
Operating a CSD requires skilled personnel with expertise in dredging techniques, equipment maintenance, and safety procedures. Proper training and experience are crucial for successful operations.
Regular maintenance and timely repairs of the dredger and its components are vital to ensure optimal performance and longevity. This includes inspection of the cutter head, dredge pump, pipeline, and winches.
Dredging projects involving CSDs can be expensive due to the cost of equipment, fuel, maintenance, and personnel. A thorough cost-benefit analysis should be conducted to ensure feasibility and budget adherence.
Cutter Suction Dredgers are essential tools in the dredging industry, providing efficient and versatile solutions for removing sediment, silt, and other materials from water bodies. Their ability to handle a wide range of materials, combined with high efficiency and precision, makes them invaluable for projects such as maintaining navigable waterways, land reclamation, and environmental restoration. By understanding their components, operation, advantages, and considerations, stakeholders can optimize the use of CSDs to achieve successful dredging outcomes.
What is a Cutter Suction Dredger used for?
A Cutter Suction Dredger is used for dredging various materials from the seabed or riverbed, including sediment, silt, and rock, for purposes such as maintaining navigable waterways, land reclamation, and environmental restoration.
How does a Cutter Suction Dredger work?
A CSD works by using a rotating cutter head to loosen material, which is then sucked up through a suction pipe and transported via pipeline to a disposal site.
What are the types of Cutter Suction Dredgers?
Types include stationary, self-propelled, and electric CSDs, each designed for specific applications and operational environments.
What are the advantages of using a Cutter Suction Dredger?
Advantages include versatility, high efficiency, precision, long-distance material transport, and environmental friendliness.
What considerations should be taken when using a Cutter Suction Dredger?
Considerations include site conditions, environmental regulations, operational expertise, maintenance, and cost factors.
