Self-propelled transport platform is a kind of transport equipment that can drive autonomously and is usually used for logistics and cargo transportation. It has its own power system and control system, which can move and handle cargo without external traction.

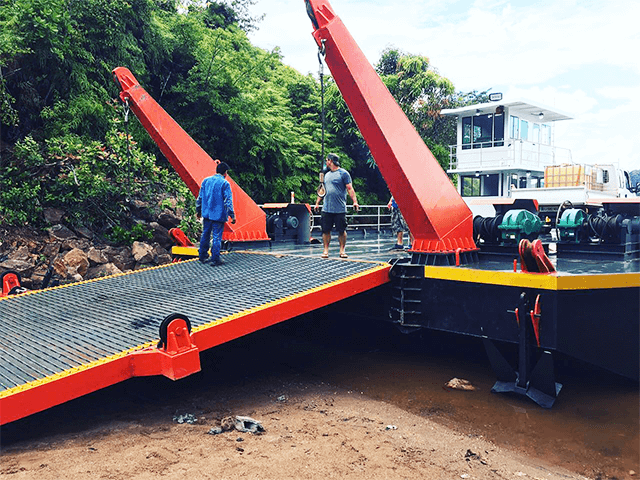

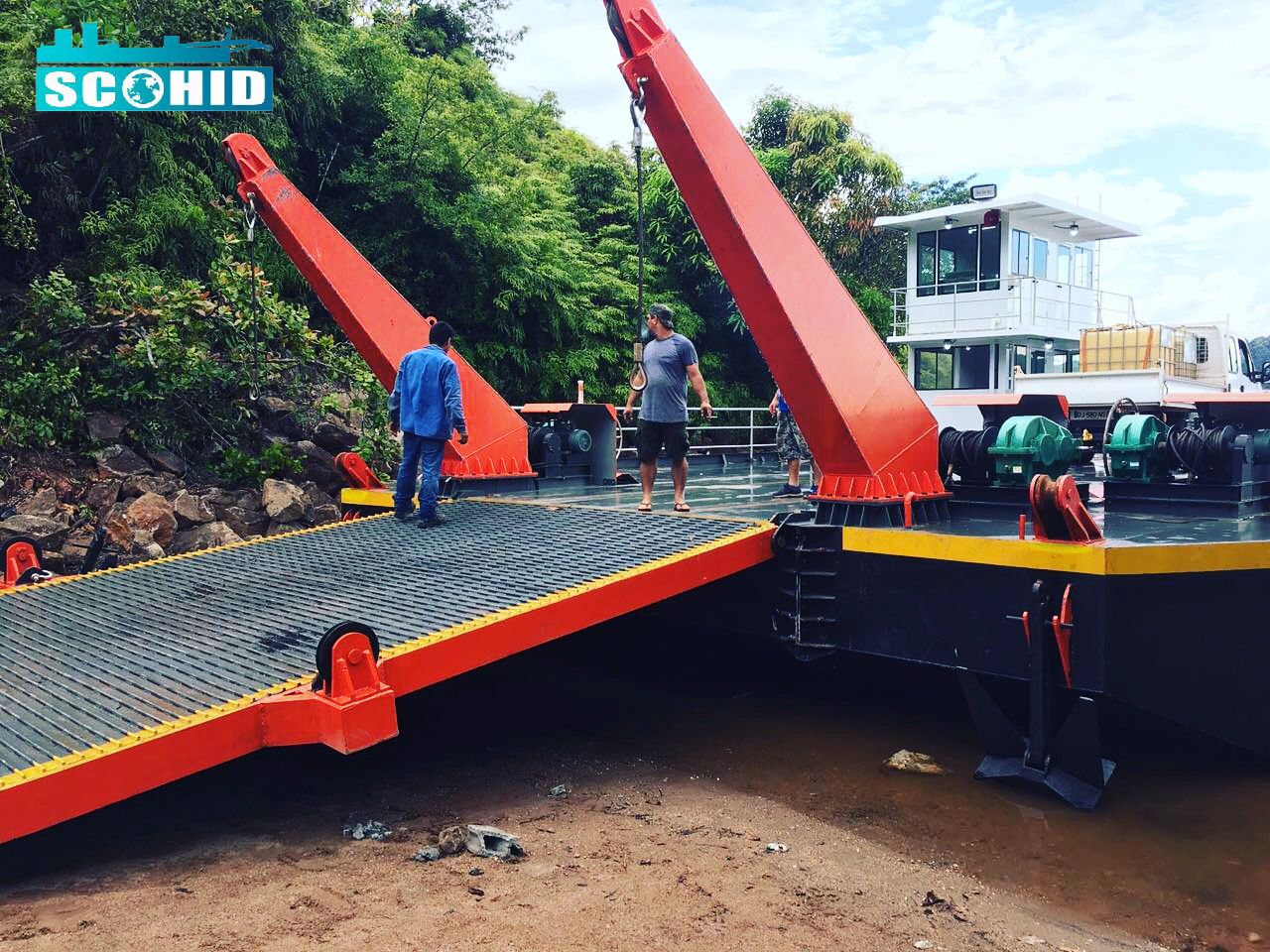

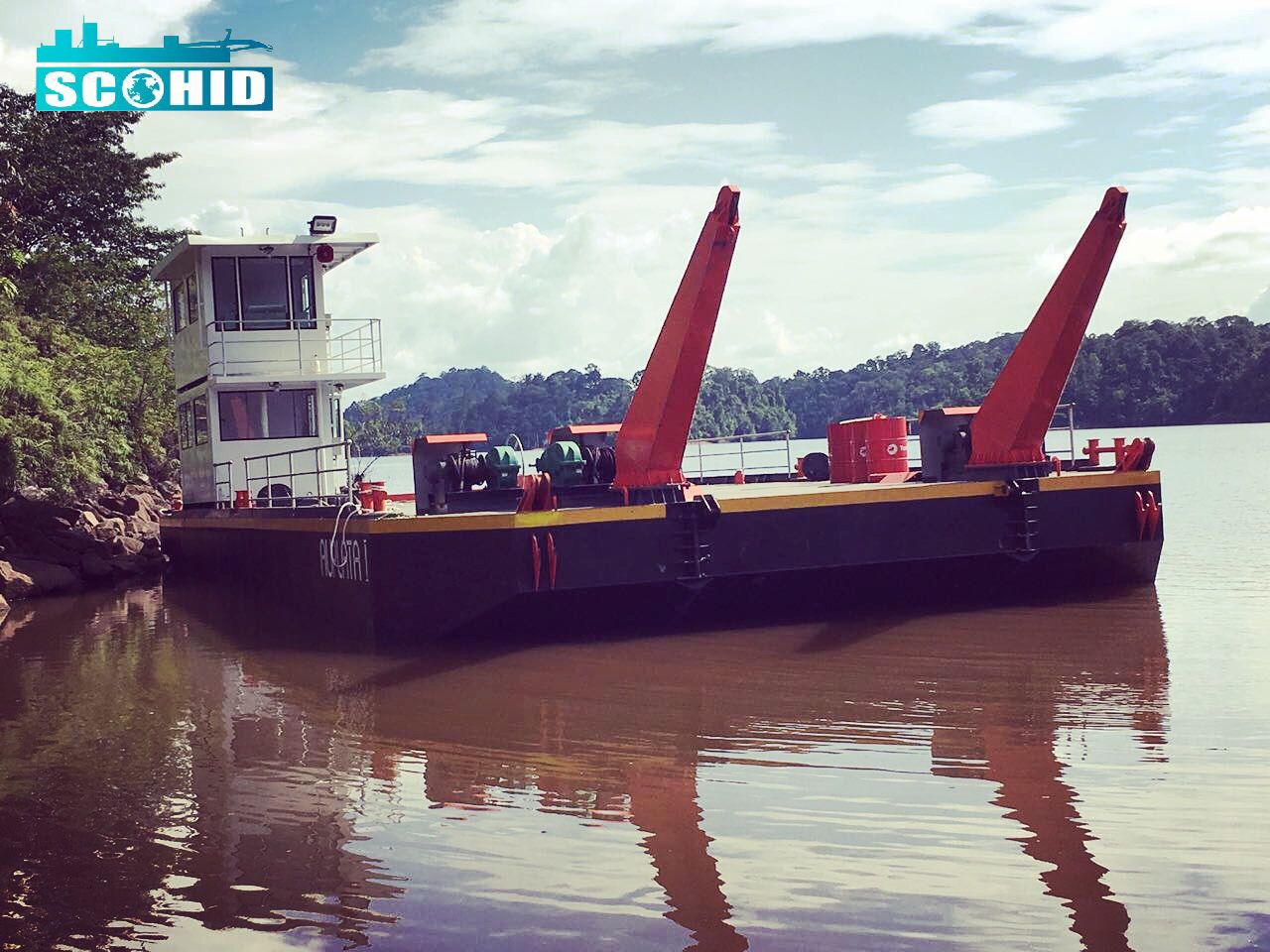

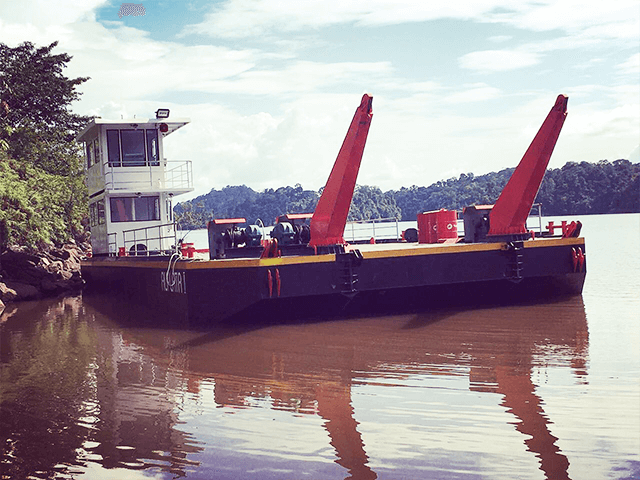

The barge works in an Artificial lake in Suriname. The purpose of the barge is to transport largescale weight equipment from on side of the lake to the other, and provide it to a gold mining company on the other side. The equipment is ready for use anytime.This barge has been operating for 5 years, and the customer satisfaction is very high.
Technical parameter：
No序号 | Item 项目 | Description 描述 | Remark 标记 |
1. | Overall dimensions总长 | 20.5x10x1.6m | It weighs 60T 一共重60T |
Wide宽 | 3m+4m+3m | ||
High高 | 1.6m | ||
Slope Length斜坡长 | 6m | ||
Hand winch 手动绞车 | 4Sets | ||
Connection type 连接方式 | Flange法兰 | ||
Weight case 重量箱 | Two fuel tanks 2个燃料箱 | Inside the hull 船体里面 | |
Water tank 水箱 | 10T | ||
Storeroom 储藏室 | 4m³ | ||
Anchor 锚 | 2Sets | ||
2. | Generator 发动机 | 12kw | |
Engine brand 发动机品牌
| Weichai 潍柴 | ||
Engine Power发动机功率 | 2*150hp/rpm | ||
Brand品牌 | 潍柴杜依次 | CCS approved | |
WP6C150 | |||
Rotate speed转速 | 1500 | ||
3. | Propeller螺旋桨 | 2 sets | Free propeller blades免费送螺旋桨片 |
Loading capacity 载重 | 300 Tons | ||
Sailing speed 航行速60T度 | 5 Knots | ||
Manufacture制作 | SCO HID |
Frequently Asked Questions:
Q1: What are the delivery conditions?
A: The delivery of SCO HID Dredger can be done either in containers or in bulk, depending on the size of the dredger. We have dredgers in stock and constantly store dredger parts, pipes, and pontoons to reduce the delivery time for special requirements.
Q2: What are the payment conditions?
A: Payments can be made through T/T (telegraphic transfer) or L/C (letter of credit). We are open to discussing payment terms and financial support.
Q3: What are the warranty conditions?
A: SCO HID offers a standard 1-year warranty, along with free problem-solving assistance for the lifetime of the dredger. We are committed to providing technical support whenever needed.
Q4: How reliable is the Dredger Electrical System?
A: The PLC system is manufactured by Siemens, a reputable brand. Most of the electrical components are sourced from top-class companies like CHINT. The electrical system undergoes thorough testing within our factory to ensure its reliability.
Thank you and welcome to visit our shipyard anytime!
